NovoRoller Acoustic Roller Shutter Doors
NOVODOOR is a leading manufacturer based in Turkey, specializing in acoustic roller shutter doors for premium construction projects. Our innovative acoustic roller shutter doors have undergone rigorous testing and received third-party approvals, ensuring they meet the highest standards for sound reduction, with capabilities of up to 57dB.
Certified to EN ISO 717-1:2013 standards and accredited with EN ISO 10140-2:2013 for Measurements of Airborne Sound Insulation, NOVODOOR’s galvanized steel curtain profiles offer sound insulation options ranging from 35dB to 57dB.
Product Downloads
NovoRoller Acoustic Roller Shutter Doors – EN
Performance Characterictics
NS100 35dB
- Certificate: Acoustic rated insulated roller shutter (Rw=35,4 dB)
- Sound reduction index: Rw (C; Ctr)= 35,4 (-2 ; -5)dB / EN ISO 717-1:2013
NS100 38dB
- Certificate: Insulated roller shutter (Rw=38,5 dB)
- Sound reduction index: Rw (C; Ctr)=38,5 (-2;-7)dB according to EN ISO 717-1:2013
NS100 + NS80 43dB
- Certificate: Acoustic rated insulated roller shutter (Rw=43 dB)
- Sound reduction index: Rw (C; Ctr)= 43 (-3 ; -8)dB according to EN ISO 717-1 :2013
- Resistance to fire: EN 1634-1:2014 + A1 :2008, rated E240
- Classified according to: EN 13501-2 :2016
- Extended application of test results according to EN 15269-10:2011

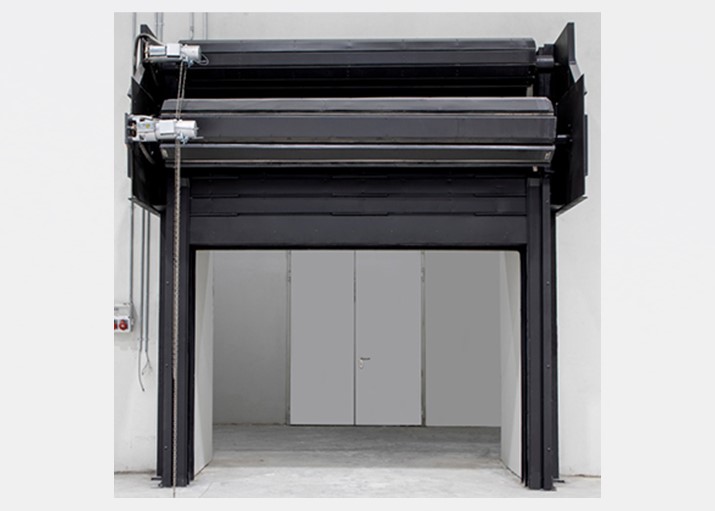

NS170 + NS80 57dB
- Certificate: Acoustic Rated insulated roller shutter (Rw=57 dB)
- Sound reduction index: Rw (C; Ctr)= 57 (-3 ; -10)dB EN ISO 717-1 :2013
- Resistance to fire: EN 1634-1:2014 + A1 :2008, rated EI120
- Classified according to EN 13501-2 :2016
- Extended application of test results according to EN 15269-10:2011
Specifications

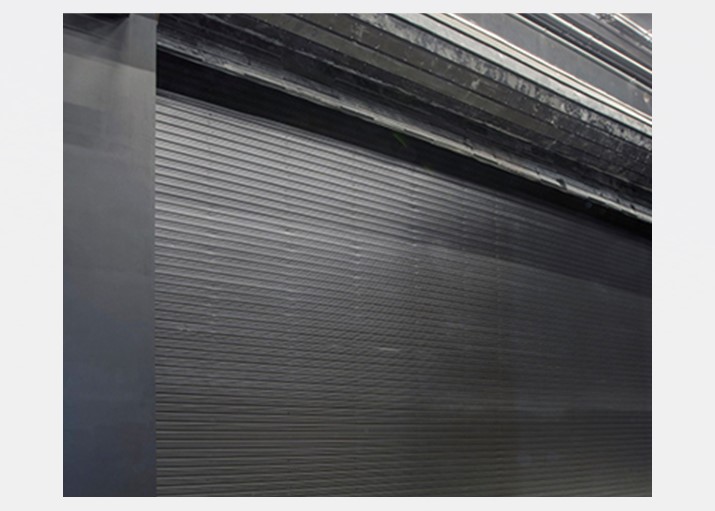

- Profile/curtain made of galvanized interlocking roll-formed steel, double-skinned thermally insulated profile, 100mm flat slat, 77mm and 90mm curved slat, sheet thickness 2,00mm, nominal thickness 18,5mm and 24mm. The profile/curtain is filled with rock wool or polyurethane foam to provde good heat and sound insulation.
- Profile/curtain made of galvanized steel or stainless steel or aluminium in curved diamond shape tube profile 1,00mm or 1,20mm thickness and connected with coupling links 3,00mm thickness. The profile/curtain provide maximum visibility, ventilation and security while maintaining the necessary security.
- Side Guides: Side guides rails made of galvanized steel U type profiles, 60x70x2 mm or 60x120x3 dimension made by press break bending method and have plastic strips for sealing & brush for quiet movement and less vibration at the both sides.
- Roller / Barrel: The roller / barrel comprises a seamless tube of suitable diameter and thickness to avoid deflection. Steel shafts and discs are inserted at each end and the whole assembly is supported at each end on the end brackets
- Bottom Rail: Bottom rail made of galvanized steel profile or aluminium extrusion deflection-resistanant bottom profile. The flexible and elastic whether rubber seal for optimal compensation of floor irregularities which prevent penetration of rain, water, dust and dirty.
- Endplates: Manufactured from galvanized steel of adequate thickness between 3,00 mm and 5,00 mm with special steel bending design, relative to door size and supplied with steel plates for fixing to the structure.
- Hood – Fascias: Galvanized steel hoods (U or L shaped) and fascias can be supplied to cover the coiled shutter and motor. Where required, a fascia can be fitted to give an aesthetic finish to the product.
- Finish: NOVODOOR shutters are finished in standard galvanised steel. Polyester powder coat in a range of standard RAL colour are available on request.
Control Systems
- Manual Roller Shutter Control: A crank and chain operator for emergency opening installs a detachable hand drive in your automatic roller garage door and several spaces to open the door in case of power failure.
- Wireless Roller Shutter Remote Control: A wide range of NOVODOOR automatic devices for the operation of roller shutters allowing eas, convenient control. Radio remote control system offers high security with the encrypted rolling code whilst allowing multi-users into the building.
- Wired Roller Shutter Control: Standard controls are open/close push buttons or keyswitches, mounted internally or externally, surface or recessed mounted types. Keyswitches provide a secure, safe and easily operable method of door operation for authorised users. the keyswitch operates electrically operated shutters by inserting and turning the key.

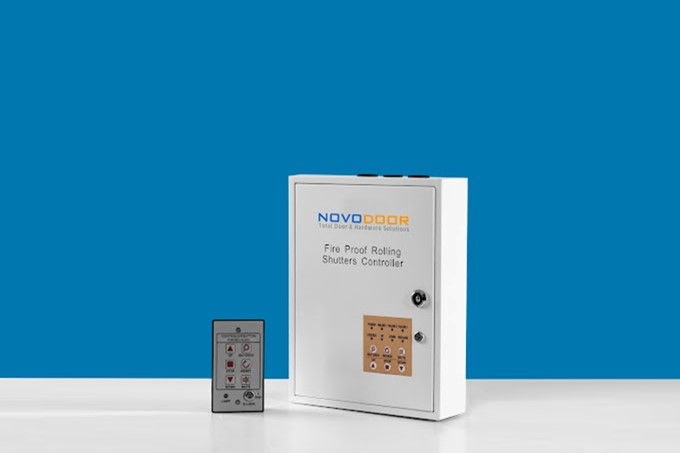

- Control Panel Box: Surface-mounted type control unite in a metal box with integrated keypad up-stop-down on the drive side with hold to run button at handy height. The technical specifications of the control panels are also equipped according to the motor powers to be used.
- Several electrical options can be integrated into the control pannels or the security management system or automatic pass system. A variety of controls is optionally available including passive motion sensors, traffic lights, timer, hand sensors, induction loops, radio remote controls, photocells, safety beam sensors, ligth curtains, push bottons, safe edges, remote monitoring system, battery back-up and audio-visual sound warming.
Advantages & Application Areas
NOVODOOR’s acoustic roller shutter doors are engineered to deliver unparalleled acoustic performance across diverse applications, ensuring optimal comfort, energy efficiency, and noise reduction in every environment.
Advantages for Architects and Designers:
- NOVODOOR offers custom production in various heights and widths, aligning perfectly with project specifications.
- Our doors, crafted with advanced manufacturing technology, represent the most dependable and professional solution available to your clients.
- Available in a spectrum of RAL colors, our doors enhance project aesthetics and value.
- They integrate seamlessly, offering sound insulation and energy efficiency that meet international standards and building regulations across residential, commercial, and industrial applications.
- NOVODOOR’s domestic production in Turkey ensures a competitive pricing advantage over global counterparts.
Advantages for Business and Property Owners:
- NOVODOOR acoustic roller shutter doors provide unmatched reliability, combining energy efficiency and sound insulation for all building types.
- Our acoustic and insulated curtain profiles effectively preserve sound and thermal comfort, reducing operational costs and energy consumption.
- In addition to superior insulation, these doors offer optimal security against theft and vandalism, featuring automatic operation and integrated safety sensors.
- Choose between mechanical or electronic locking systems, complemented by seamless integration with building automation and security systems.
- NOVODOOR’s Turkish manufacturing guarantees cost competitiveness, supported by expert technical support, installation, and maintenance services with a best-price guarantee.
- NOVODOOR acoustic rolling shutter doors are your trusted choice for enhancing building performance, comfort, and security.
Application Areas
- Industrial Projects & Facilities: Acoustically insulated roller shutter doors are indispensable in industrial and production facilities where sound control is critical. Specifically engineered to contain sound within or outside factories and commercial buildings, these doors significantly enhance energy efficiency, thereby lowering operational costs. They serve as a definitive and dependable solution for projects that prioritize acoustic performance.
- Commercial Buildings: For commercial buildings requiring superior acoustic properties, acoustically insulated roller shutter doors offer the ultimate solution. Ideal for environments like schools, hospitals, shopping malls, cultural centers, and hotels, these doors provide alternative designs ranging from 35dB to 57dB sound reduction. They effectively mitigate noise pollution, ensuring a quieter and more comfortable indoor environment for occupants.
- Housing & Villa Projects: In villa projects and residential settings, acoustic rolling shutter doors cater to homeowners seeking enhanced sound insulation in areas such as garages and warehouse spaces. These doors are specially designed to complement various project designs. Offering customized solutions in terms of color and size to meet specific aesthetic and functional requirements.
- Complex Housing Projects: Within complex housing developments, acoustic roller shutter doors are essential for areas demanding superior sound insulation. Tailored production ensures these doors align seamlessly with project specifications, providing effective noise control while maintaining architectural integrity.
