NovoRoller Fire Rated Roller Shutter Doors

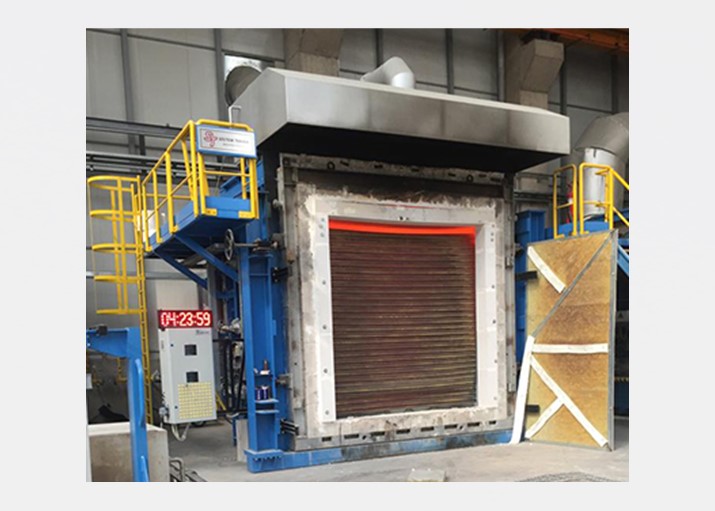

NOVODOOR has successfully completed the 1634-1 EN 13501-2:2016 E240 and EI1-120 tests, marking the commencement of manufacturing fire-resistant roller shutter doors. Our fire-resistant steel roller shutter doors are engineered to meet stringent security standards, featuring EI90, EI120, and E240 fire resistance capabilities. NOVODOOR proudly stands as Turkey’s sole domestic manufacturer offering EI60, EI90, EI120, and E240 insulated fire-resistant or non-insulated roller shutters, adhering to Regulation on Fire Protection of Buildings Article 4 guidelines.
Product Downloads
NovoRoller Fire Rated Roller Shutter Door Series – EN
Performance Characterictics
NS80 E240 Non-Insulated
- Certificate: Fire Rated Roller Shutter E240
- Resitance to Fire: EN 1634-1:2014 + A1:2008, rated E240
- Classified according to EN 13501-2:2016 standards
- Extended application of test results according to EN 15269-10:2011
NS100 E240 Insulated
- Certificate: Fire Rated Roller Shutter E240
- Resitance to Fire: EN 1634-1:2014 + A1:2008, rated E240
- Classified according to EN 13501-2:2016 standards
- Extended application of test results according to EN 15269-10:2011
Serrfire NS150 EI90 Serra60 Insulated
- Certificate: Fire Rated Roller Shutter EI90
- Resitance to Fire: EN 1634-1:2014 + A1:2008, rated EI90
- Classified according to EN 13501-2:2016 standards
NS170 EI120 Insulated
- Certificate: Fire Rated Roller Shutter EI120
- Resitance to Fire: EN 1634-1:2014 + A1:2008, rated EI120
- Classified according to EN 13501-2:2016 standards
- Extended application of test results according to EN 15269-10:2011
Specifications
- Profile/curtain made of galvanized interlocking roll-formed steel, single-skin, with perforated or non-perforated profile, 80mm curved slat or 110mm flat slat, sheet thickness from 0,80mm to 1,20 mm. The profile/curtain allows ventilation (appx 25% air passage) and/or provide through visibility while maintaining the necessary security.
- Profile/curtain made of galvanized interlocking roll-formed steel, double-skinned thermally insulated profile, 100mm flat slat, 77mm and 90mm curved slat, sheet thickness 2,00mm, nominal thickness 18,5mm and 24mm. The profile/curtain is filled with rock wool or polyurethane foam to provde good heat and sound insulation.
- Side Guides: Side guides rails made of galvanized steel U type profiles, 60x70x2 mm or 60x120x3 dimension made by press break bending method and have plastic strips for sealing & brush for quiet movement and less vibration at the both sides.
- Roller / Barrel: The roller / barrel comprises a seamless tube of suitable diameter and thickness to avoid deflection. Steel shafts and discs are inserted at each end and the whole assembly is supported at each end on the end brackets.
- Bottom Rail: Bottom rail made of galvanized steel profile or aluminium extrusion deflection-resistanant bottom profile. The flexible and elastic whether rubber seal for optimal compensation of floor irregularities which prevent penetration of rain, water, dust and dirty.
- Endplates: Manufactured from galvanized steel of adequate thickness between 3,00 mm and 5,00 mm with special steel bending design, relative to door size and supplied with steel plates for fixing to the structure.
- Hood – Fascias: Galvanized steel hoods (U or L shaped) and fascias can be supplied to cover the coiled shutter and motor. Where required, a fascia can be fitted to give an aesthetic finish to the product.
- Finish: NOVODOOR shutters are finished in standard galvanised steel. Polyester powder coat in a range of standard RAL colour are available on request.
Control Systems
- Manual Roller Shutter Control: A crank and chain operator for emergency opening installs a detachable hand drive in your automatic roller garage door and several spaces to open the door in case of power failure.
- Wireless Roller Shutter Remote Control: A wide range of NOVODOOR automatic devices for the operation of roller shutters allowing eas, convenient control. Radio remote control system offers high security with the encrypted rolling code whilst allowing multi-users into the building.
- Wired Roller Shutter Control: Standard controls are open/close push buttons or keyswitches, mounted internally or externally, surface or recessed mounted types. Keyswitches provide a secure, safe and easily operable method of door operation for authorised users. the keyswitch operates electrically operated shutters by inserting and turning the key.
- Control Panel Box: Surface-mounted type control unite in a metal box with integrated keypad up-stop-down on the drive side with hold to run button at handy height. The technical specifications of the control panels are also equipped according to the motor powers to be used.
- Several electrical options can be integrated into the control pannels or the security management system or automatic pass system. A variety of controls is optionally available including passive motion sensors, traffic lights, timer, hand sensors, induction loops, radio remote controls, photocells, safety beam sensors, ligth curtains, push bottons, safe edges, remote monitoring system, battery back-up and audio-visual sound warming.
Advantages & Application Areas

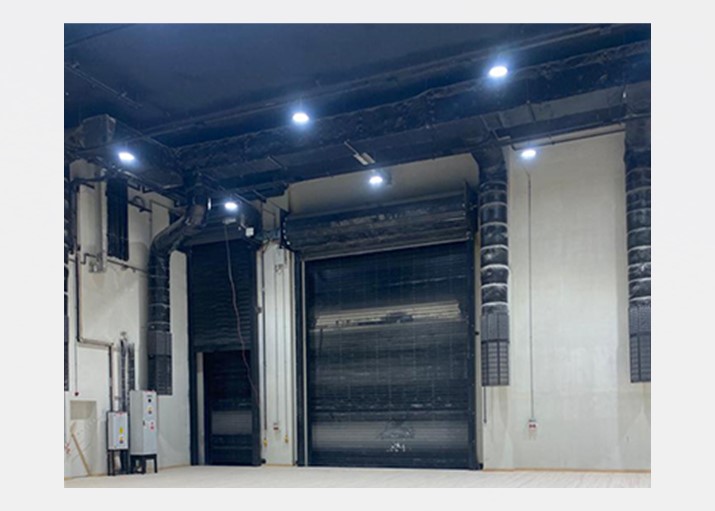

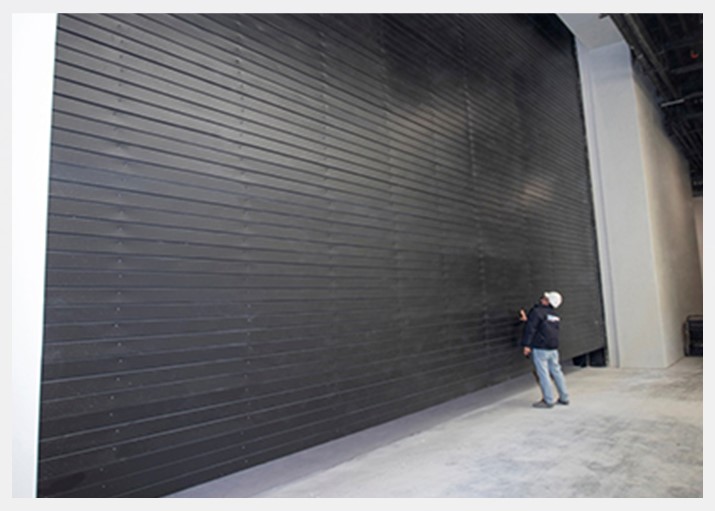

In industrial and commercial construction projects, NOVODOOR’s insulated and fire-rated roller doors serve as critical structural barriers in full-height openings, effectively compartmentalizing buildings or halting the spread of fire. These doors respond swiftly to fire signals from building alarm systems, ensuring safe and reliable closure.
Designed for activation during fire emergencies, our roller shutters systems prevent the spread of fire throughout buildings upon receiving signals from fire or automation systems. This proactive approach not only safeguards against fire propagation but also facilitates safe evacuation procedures.
Beyond fire-resistant capabilities for wide openings, our insulated rolling doors provide secure access control under normal operating conditions. Equipped with mineral stone wool insulation, these doors effectively regulate indoor temperature differences while reducing noise, dust infiltration, and sound transmission.
NOVODOOR’s insulated and fire-resistant rolling door systems offer not only enhanced security and fire protection but also contribute to energy savings. They are the preferred choice for building owners and designers prioritizing superior life and property safety standards.
Advantages for Architects and Designers:
- NOVODOOR’s fire-resistant rolling shutter door systems offer unparalleled safety and fire protection solutions for designing factories and industrial facilities. Acting as structural barriers in full-height openings, they effectively compartmentalize buildings to contain fire outbreaks and prevent their spread. Activated by signals from building fire and automation systems, these doors ensure prompt closure to mitigate fire hazards and facilitate safe user evacuation.
- Available in EI60, EI90, EI120, and E240 fire resistance ratings, as well as E240 insulated fire resistance options, these doors are tailored to project specifications with special production capabilities in various heights, widths, and RAL colors. Leveraging advanced production technologies, they represent the most reliable and professional fire protection solution available, enhancing project value through their stylish design and multifunctional insulation properties.
Advantages for Business and Property Owners:
- NOVODOOR’s fire-resistant rolling shutter doors are the definitive choice for building owners and designers prioritizing the highest standards of life and property safety. Serving as robust structural barriers in full-height openings, these doors safeguard businesses by effectively compartmentalizing spaces during fire incidents, thus preventing fire spread.
- In addition to their primary fire protection role, these insulated systems deliver energy savings and exceptional security control, enhancing operational efficiency and comfort. They contribute significantly to maintaining sound and heat insulation within buildings, while their integration capabilities with building automation and security alarm systems ensure comprehensive protection.
- These doors not only provide a secure barrier against vandalism but also ensure swift and safe evacuation when activated by building fire and automation signals. NOVODOOR’s Turkey-based domestic production offers a competitive pricing advantage for insulated fire-resistant rolling shutter doors compared to global competitors. Supported by our expert technical, installation, and maintenance team, we provide comprehensive pre-sales and after-sales services with a best-price guarantee, ensuring utmost customer satisfaction and peace of mind.
Application Areas
- Airports, Aircraft Parking Lots, Hangars: NOVODOOR’s insulated fire-resistant rolling shutter doors are essential in airport environments, aircraft parking lots, and hangar entrances, providing robust fire protection and safety measures.
- Large-Scale Industrial Facilities and Commercial Buildings: These doors are integral in large-scale industrial facilities and commercial buildings, ensuring fire safety in critical areas such as loading stations and cold storages.
- Factory and Warehouse Areas: In industrial zones and similar structures, Novodoor’s doors are crucial where there’s a high risk of fire spread, such as in chemical, pharmaceutical, textile, furniture, wood, and electrical systems.
- Facilities at Risk of Fire and Explosion: They are indispensable in structures prone to fire and explosion hazards, offering reliable protection against potential risks.
- Automotive Industry and Car Parking Areas: Ideal for use in the automotive industry and car parking areas, providing both fire resistance and enhanced security.
- Buildings with High User Traffic: Found in schools, hospitals, hotels, shopping malls, and parking lots, these doors ensure safety and protection in high-traffic environments.
- Interior and Exterior Spaces in All Building Types: Suitable for applications where acoustic, insulation, radiation, and wind resistance properties are required, enhancing overall building efficiency and safety.
- Industrial Projects & Facilities: NOVODOOR’s insulated fire-resistant rolling shutter doors are the preferred choice for industrial facilities and factories with high fire/explosion risks. They provide a professional solution ensuring life and property safety in demanding construction projects, while also reducing operating costs through energy efficiency.
- Commercial Buildings: In commercial structures with fire risk, NOVODOOR’s steel profile rolling shutter doors offer superior safety and reliability. These doors cater to diverse business needs with options in acoustic performance, fire resistance, wind load resistance, and insulation. They integrate seamlessly with building alarm and automation systems, featuring advanced opening, closing, and locking technologies.
- Housing & Villa Projects: For villa projects, vehicle parking areas, garages, and storage entrances, Novodoor’s insulated fire-resistant roller doors offer homeowners unmatched fire protection and insulation benefits. Custom-produced in sizes and colors to complement project aesthetics, these doors ensure both functionality and stylish appeal. Equipped with high-tech curtain motors, they operate safely and integrate with smart home systems for enhanced convenience and security.
- Luxury Residence and Complex Housing Projects: In luxury residential designs, these doors are ideal for building parking areas and main entrances, supporting smart building initiatives with top-tier quality and energy efficiency. Tailored production ensures alignment with project design specifications, while advanced activation options—remote control, central systems, and tag systems—allow for automated operation during emergencies.
