NovoWood Fire & Smoke Doors
NOVODOOR provides wide range of fire & smoke rated doors compliant with EN 1634-1 and UL10c NFPA standards. These doors 30-60-90-120 min. feature solid or mineral core construction for enhanced safety and durability. Options include HPL Laminated, Coated Lacquered, or Natural Wood finishes. Facing options include 4mm MDF or direct uplication without facing. Frames are available in MDF, hardwood, steel. Choose from flat or glazed models with various color options to suit your project requirements. Hardware sets are optional and can be customized based on project needs. Standard and custom sizes are available to meet specific design specifications.
Product Downloads

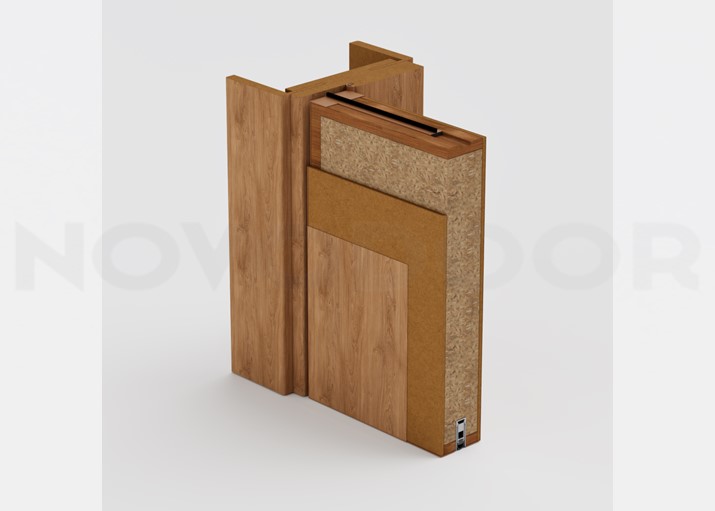

NovoWood Fire 30
NovoWood Fire 30 Technical Specifications-EN
NovoWood Fire 30 Technical Specifications-TR

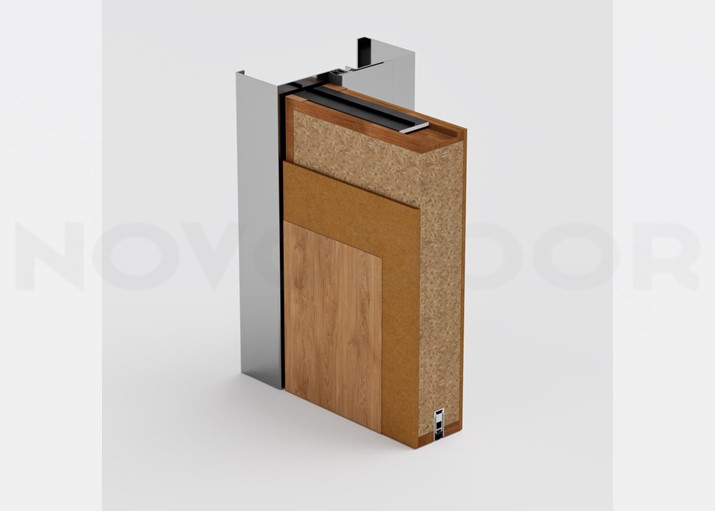

NovoWood Fire 60
NovoWood Fire 60 Technical Specifications-EN
NovoWood Fire 60 Technical Specifications-TR

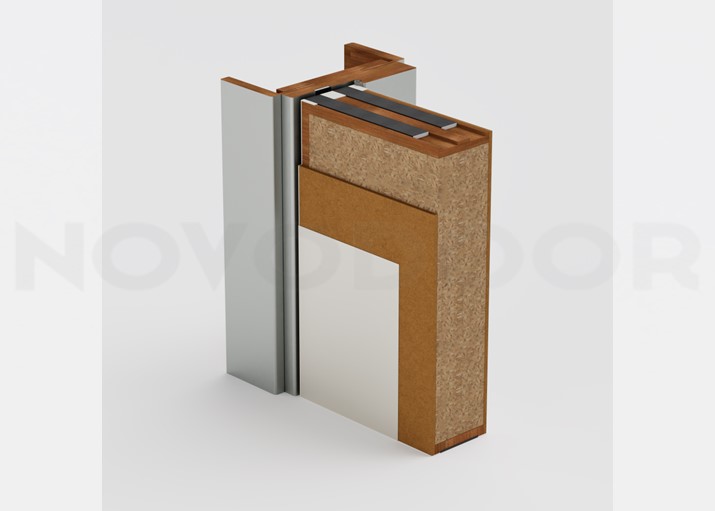

NovoWood Fire 90
NovoWood Fire 90 Technical Specifications-EN
NovoWood Fire 90 Technical Specifications-TR

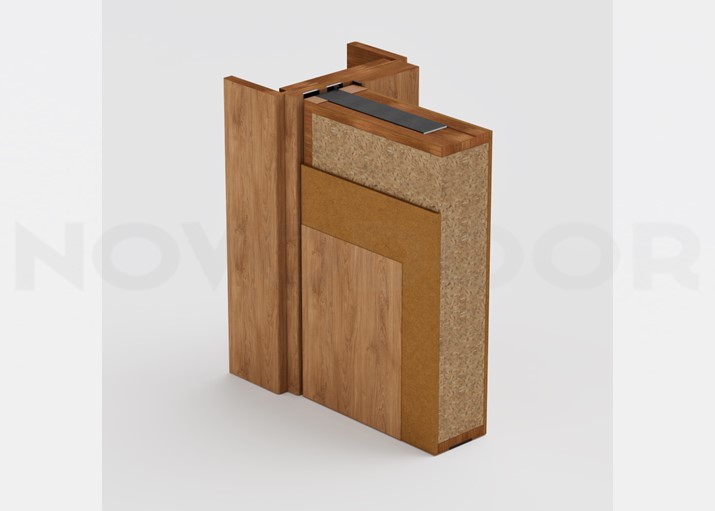

NovoWood Fire 120
NovoWood Fire 120 Technical Specifications-EN
NovoWood Fire 120 Technical Specifications-TR
NovoWood NFPA
NovoWood NFPA Technical Specifications-EN
NovoWood NFPA Technical Specifications-TR
Specifications
Leaf Types
- Leaf Thickness: 53-74mm
- Surface Finish: HPL (Hight Pressure Laminate), Coated (Lacquered), Alpi Industrial Wood, Natural Wood Veneer
- Facing: 4mm MDF or direct uplication without facing

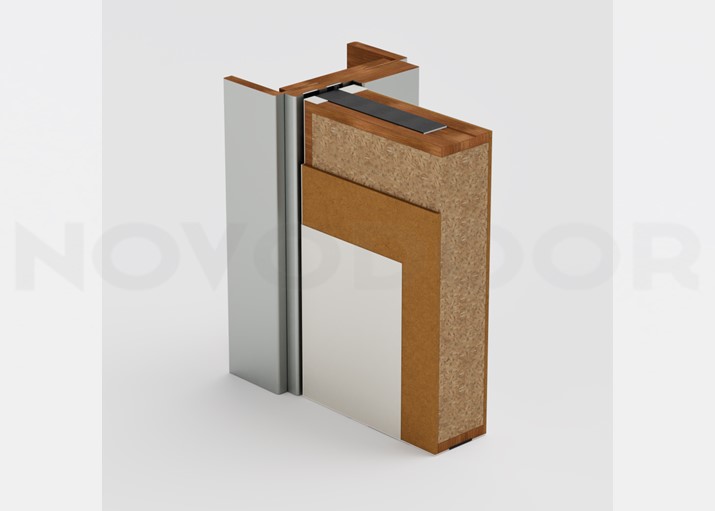

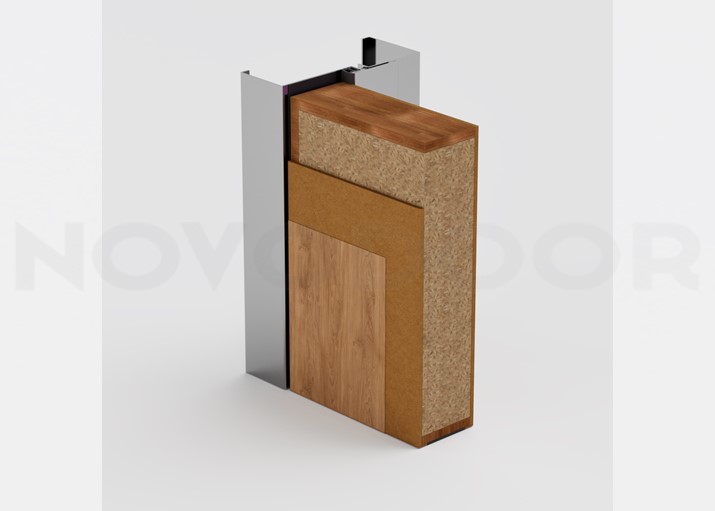

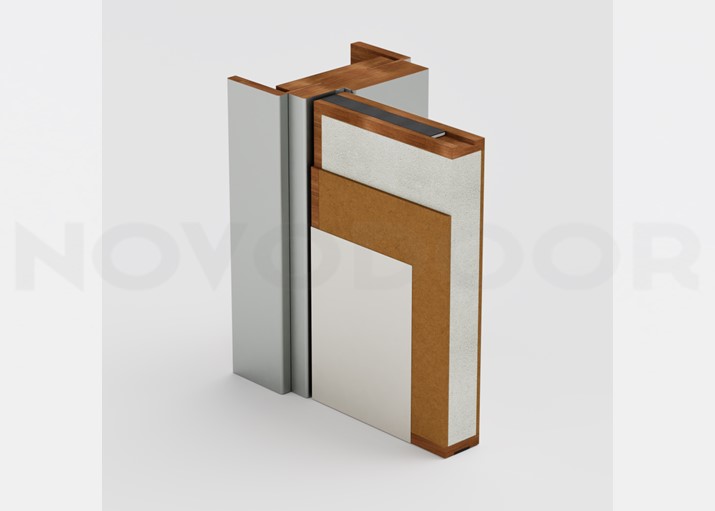

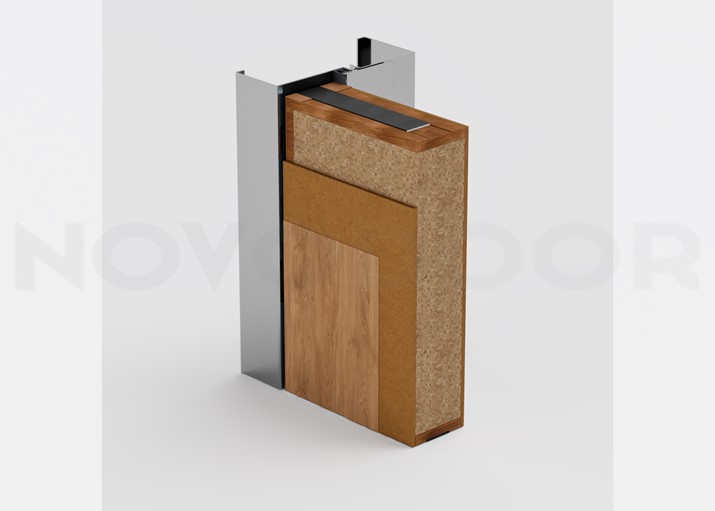

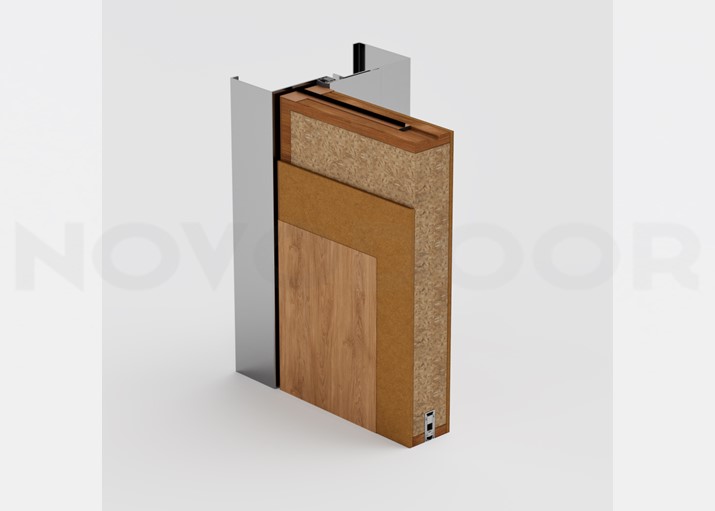

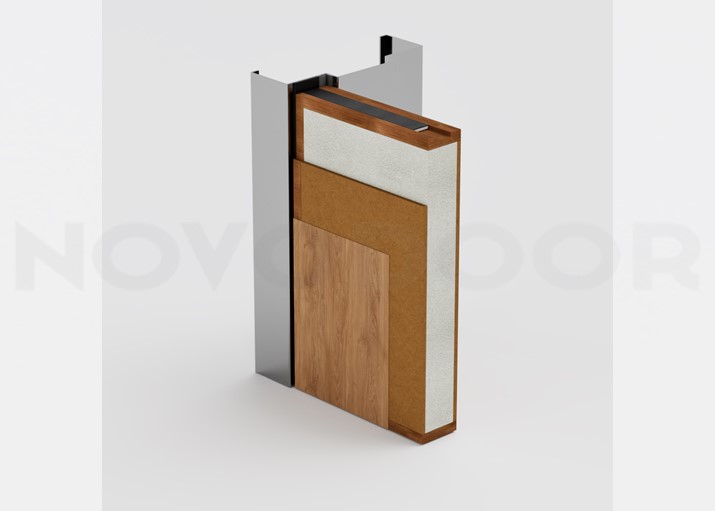

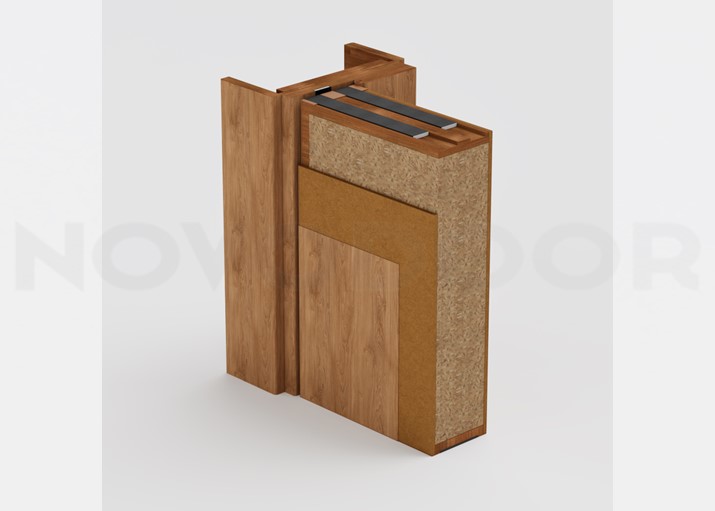

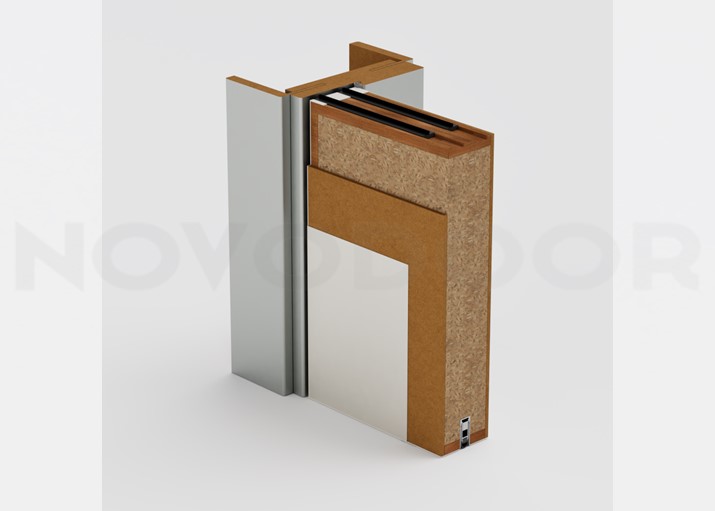

- Core Type: Solid fire core 44-54-60-64mm or mineral core
- Rails & Stiles: N/A
- Models & Elevations: 10mm Hardwood Lipping, Groove, Molding, CNC shapes, Glazed models optional
- Rebate On Leaf: Rebated or non-rebated
Frame Types
- Frame Material: MDF, Hardwood, Steel Galvanized
- Surface Finish: CPL Laminated, Alpi Industrial Wood, Natural Wood for MDF and Hardwood, Powder Coated for Steel Galvanized
- Material Thickness: 40-42-44mm for MDF and Hardwood, 1,5mm or 2mm for Steel Galvanized
- Architrave: 8x80mm, 12x80mm, 18x80mm, 18x100mm for MDF, 60/75mm or 70/80mm for Steel Galvanized
- Rebate On Frame: Rebated or non-rebated
Dimensions
- Standard Wall Width: Single 800-900-1000mm, Double 1400-1600-1800mm
- Standard Wall Height: 2100-2200mm
- Standard Wall Thickness: 110-150-170-210mm
- Max Wall Width: Single 1300mm, Double 2300mm (Fire 30 HPL, Coated, Natural) Single 1350 Double 2000 (Fire 30 HPL STL) | Single 1300mm, Double 2200mm (Fire 60 HPL, Coated, Natural) Single 1250 Double 1900 (Fire 60 HPL STL) | Single 1250mm, Double 1800mm (Fire 90 HPL, Coated, Natural, HPL STL), Single 1150mm, Double 2000mm (Fire 120 HPL, Coated, Natural) Single 1250 Double 2000 (Fire 120 HPL STL) | Single 1300mm, Double 2400mm (UL 10c 60 – 90) Single 1250 Double 2400 (UL 10c 60 STL – 90 STL)
- Max Wall Height: Single 3100mm, Double 2800mm (Fire 30 HPL, Coated, Natural) Single 3150 Double 2500 (Fire 30 HPL STL) | Single 3100mm, Double 2550mm (Fire 60 HPL, Coated, Natural) Single 2850 Double 2450 (Fire 60 HPL STL) | Single 2950 Double 2700 (Fire 90 HPL, Coated, Natural, HPL STL) | Single 2900 Double 2700 (Fire 120 HPL, Coated, Natural, HPL STL) | Single 2800mm, Double 3000mm (UL 10c 60 – 90 – 60 STL – 90 STL)
- Max Wall Thickness: 240mm
- Doorset Option: Single & Double
Additional Features
- Hardwares: Optional
- For Glazing: Optional
- For Louver: N/A
- Gasketing: Intumescent Brush Strip, Dual Seal Intumescent Strip or EPDM
- Acoustical: Optional
- Fire Rating: 30-60-90-120 min.
- Certification: EN 1634-1, BS 476-22, UL10c, ISO 9001, ISO 14001
- Transom Panel: Overpanel max 1000mm (Fire 120 HPL, Coated, Natural), Overpanel max 1500mm (Fire 30-60-90 HPL, Coated, Natural), N/A (Fire 30-60-90-120 HPL STL, UL10c 60-90-60 STL-90 STL)
Advantages & Application Areas
Advantages
- Fire Protection: Fire Rated doors offer crucial fire resistance for 30, 60, 90, or 120 minutes, providing valuable time for evacuation and containment in the event of a fire. They are essential for enhancing building safety and meeting regulatory requirements.
- Aesthetic Appeal: Despite their fire resistance, Fire Rated doors can still be aesthetically pleasing. They come in various finishes, including natural wood grains, stains, and paints, allowing them to blend seamlessly with interior decor or architectural styles while maintaining safety standards.
- Customization: These doors can be customized in terms of size, design, and finish. They can feature different veneers, textures, and hardware options, accommodating diverse design preferences without compromising on fire safety.
- Durability: Fire Rated doors are built to withstand high temperatures and maintain structural integrity during a fire. They are engineered with materials that resist heat transfer and minimize smoke penetration, ensuring reliable performance in emergency situations.
Application Areas
- Commercial Buildings: Fire Rated doors are essential in offices, retail stores, hospitals, and other commercial settings where fire safety is paramount. They protect exit routes and compartmentalize areas to prevent the spread of fire and smoke.
- Residential Buildings: Homeowners install Fire Rated doors in residences to protect family members and property. These doors can enhance safety in kitchens, garages, and other vulnerable areas prone to fire hazards.
- Educational Institutions: Schools, universities, and daycare facilities use Fire Rated doors to safeguard students, staff, and valuable educational assets. These doors contribute to a secure learning environment and comply with fire safety regulations.
- Healthcare Facilities: Hospitals and clinics utilize Fire Rated doors to safeguard patients, staff, and medical equipment. These doors help maintain essential services during emergencies and ensure compliance with healthcare safety standards.
- Hospitality Industry: Hotels, resorts, and entertainment venues incorporate Fire Rated doors to protect guests and staff. These doors enhance guest safety and security while blending seamlessly into the hospitality environment.
